Fiberglass Cylinders/tubes are used in the electrical equipment manufacturing industry for providing insulation resistance. These cylinders are made out of continuous fiberglass filaments impregnated with epoxy resin at suitable angles using filament winding process. Our product has the advantages of reliable quality, smooth appearance, uniform colour, neat cutting ends and small thickness tolerance with strict manufacturing technology. Due to its superior mechanical and electrical properties, they are widely used in the transformers, switchgear, On-Load tap changers, reactors, surge arresters and insulator industry. The tubes are tested for critical high voltage applications with in-house testing equipment and also with external agencies like CPRI and CIPET.
Features
- Superior electrical properties
- High mechanical strength
- Strong impact resistance and shock resistance
- Light weight which makes easy for handling and transportation
- Excellent corrosion & abrasion resistance
- God anti-brittleness and creep resistance
Applications
- Insulators
- Transformers & switch gears
- Electrical Winding Insulation
- Potable Water and desalination industries
- Chemical, Petrochemical, Oil & Gas industries
- Transformers
- Winding Wire Coating Insulation
- Electrical Base
- Switch Baseplate
- Construction Industry
- Pressure valves and vessels
- Welding operations

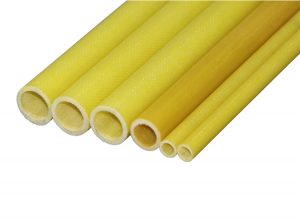

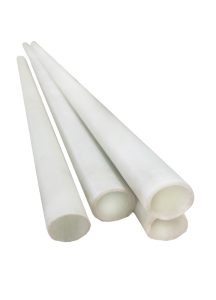

Epoxy Cloth Tube
FRP Epoxy cloth tube is made of alkali-free glass fiber cloth impregnated with epoxy resin and wound on a mandrel to required thickness and cured in owen. It is suitable for insulating structural parts in electrical equipment, and can be used in damp environment and transformer oil.
We manufacture tubes of
Length : 1 to 2 meters
Size : 8 to 80 mm diameter
Thickness : 1 to 30 mm(as per customer requirement)
Colour : Natural colour(yellowish green)

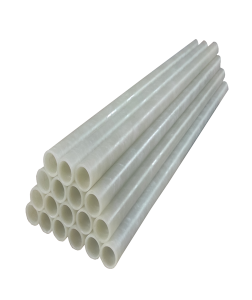

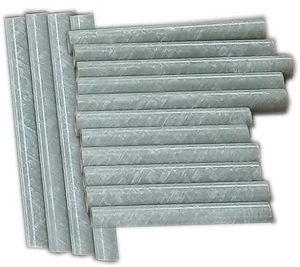

Filament Winding Tubes & Cylinders
We also manufacture specially designed FRP cylinders for Pneumatic actuators & linear valves using filament winding process to withstand high pressure
Fiberglass cylinders/tubes are made out of continuous fiberglass filaments impregnated with epoxy resin at suitable angles using filament winding process. Due to its superior mechanical and electrical properties, they are widely used in the transformers, switchgear, On-Load tap changers, reactors, surge arresters and insulator industry.
We also manufacture specially designed FRP cylinders for Pneumatic actuators & linear valves using filament winding process to withstand high pressure
We manufacture tubes & cylinders of
Length : 1 to 1.5 meters
Size : 13 to 600 mm diameter
Thickness : 1 to 30 mm(as per customer requirement)
Colour : Natural colour(yellowish green)
